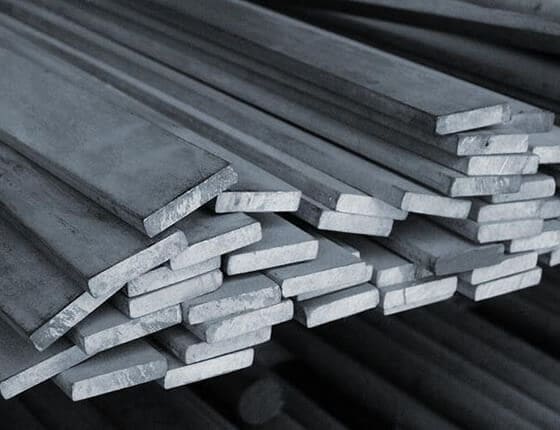

S.S. HRAP Flat Bar High resistance against corrosion with HRAP finish
HRAP Flat Bars are produced when the steel is hot rolled and then solution annealed.
This ensures the highest level of resistance against corrosion, including chloride ion corrosion. In the final step, the pickling process is performed by immersing the prepared steel in an acid solution to remove any marks or scale on the steel surface.
S.S. HRAP Flat Bar Specifications
Length
|
Upto 6.4 metre
Hot Rolled
|
Annealed & Pickled (HRAP)
Tolerance
|
ASTM A484, EN 10058
Code
|
Both ends are color coded as per the customer's specific requirement
Specifications
|
as per EN, DIN, JIS, ASTM, BS, ASME, etc.
Speciality
|
We can provide customers with custom size and length
Grades (HRAP)
|
202, 304, 304L, 316, 316L

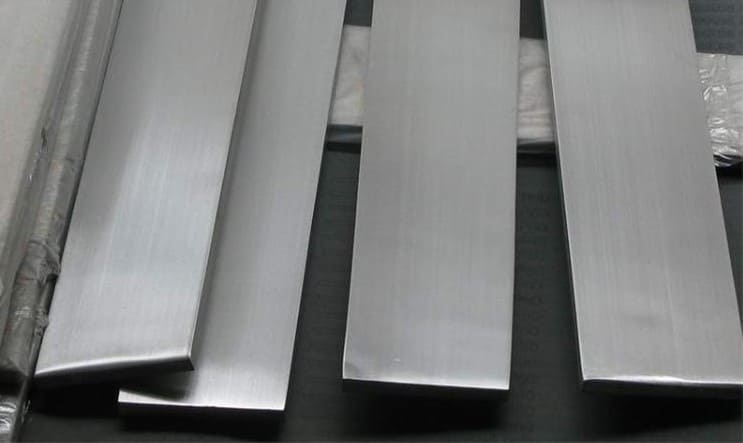

S.S. Cold Drawn Flat Bar Precision finish with improved mechanical properties
A cold-drawn flat bar is a type of steel bar that has been processed at room temperature to improve its surface finish, dimensional accuracy, and mechanical properties.
This process, known as cold drawing, involves pulling a steel bar through a die to reduce its cross-sectional area and refine its shape.
S.S. Cold Drawn Flat Bar Specifications
Length
|
2 metre – 6 metre (8 feet to 20 feet)
Tolerance
|
h11 and ASTM A 484
Surface Finish
|
Cold Drawn and Pickled Condition
Heat Treatment
|
Solution Annealed
S.S. Flat Bars Size Chart
Width (in mm)
Thickness (in mm)
20
3, 4, 5, 6, 8, 10, 12, 15
25
3, 4, 5, 6, 8, 10, 12, 16, 20
30
3, 4, 5, 6, 8, 10, 12, 16, 20, 25
32
3, 4, 5, 6, 8, 10, 12, 16, 20, 25
40
3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 30
50
3, 4, 5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 35, 40
60
5, 6, 8, 10, 12, 16, 20, 25, 30, 40
65
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
70
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
75
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
80
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
90
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
100
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
110
5, 6, 8, 10, 12, 16, 20, 25, 30, 32, 40, 50
120
6, 8, 10, 12, 16, 20, 25, 30
125
6, 8, 10, 12, 16, 20, 25, 30
152
6, 8, 10, 12, 16, 20, 25, 30, 32
200
8, 10, 12, 16, 20, 25
205
8, 10, 12, 16, 20
225
8, 10, 12, 16, 20
250
8, 10, 12, 16, 20
300
8, 10, 12, 16, 20
325
8, 10, 12, 16, 20
350
8, 10, 12, 16, 20
400
8, 10, 12, 16, 20
