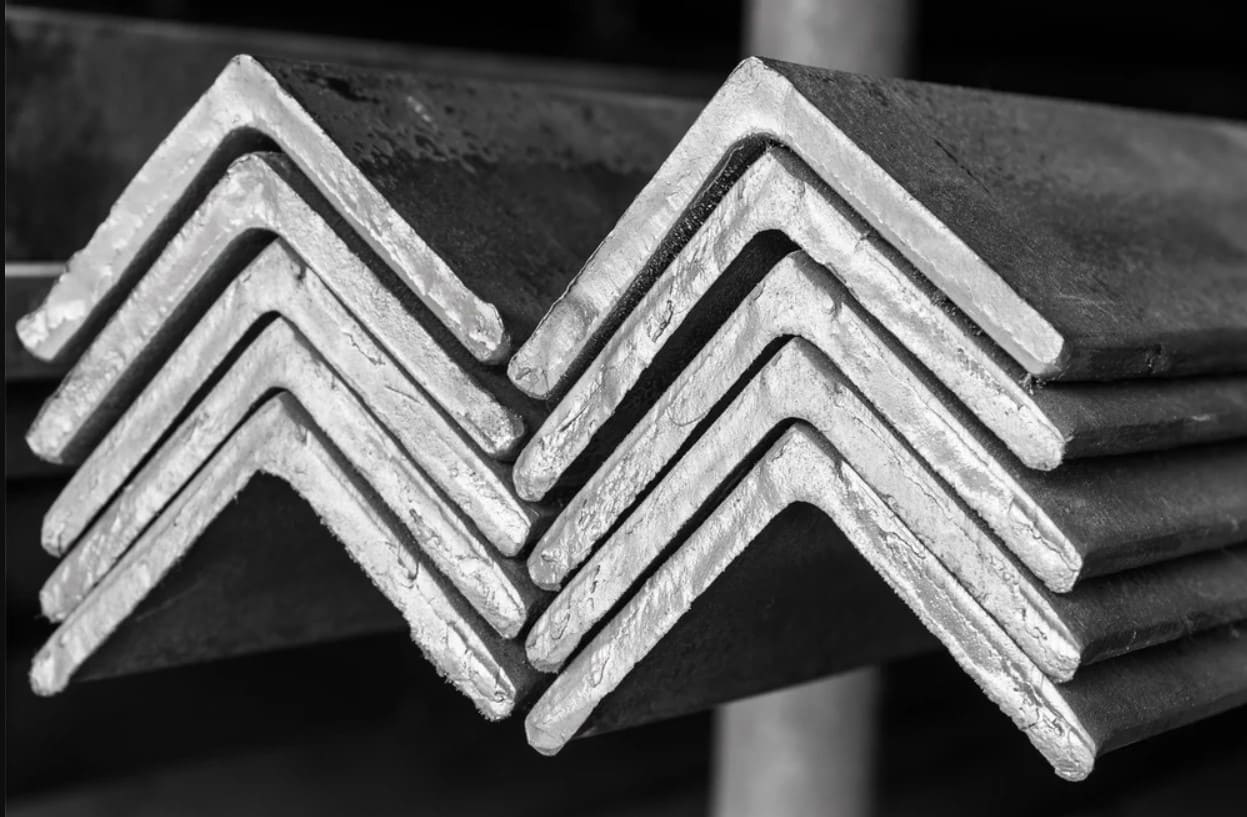

Equal Angle L-shaped bars with equal legs for structural support
Stainless steel equal angles are L-shaped metal bars with legs of equal length and a 90-degree angle.
The symmetrical shape of equal angles makes them suitable for applications requiring consistent support across two perpendicular surfaces, such as beams, braces, and frames.
Equal Angle Specifications
Length
|
Up to 6.4 metre
Tolerances
|
ASTM A484, EN10056
Heat Treatment Process
|
Hot rolled, Solution Annealed & Pickled (HRAP)
Shot Blasting
|
As per customer’s request
Grit Polish
|
As per customer’s request
Bars End Finish
|
Deburred Ends, Plain Ends without Burrs or Sharp Edges
Dimensions
|
As per EN, DIN, JIS, ASTM, BS, ASME, etc.
Grades
|
202, 304, 304L, 316, 316L
Unequal Angle Asymmetric L-shaped bars for specialised structural needs
Stainless Steel HRAP unequal angles have one leg longer than the other and are used where unequal support is required.
They are commonly applied in automotive, construction and heavy-duty applications where asymmetrical profiles are needed.
Unequal Angle Specifications
Length
|
Up to 6.4 metre
Tolerances
|
ASTM A484, EN10056
Heat Treatment Process
|
Solution Annealed & Pickled (HRAP)
Dimensions
|
As per EN, DIN, JIS, ASTM, BS, ASME, AISI, etc.
Bars End Finish
|
Deburred Ends, Plain Ends without Burrs or Sharp Edges
Grades
|
202, 304, 304L, 316, 316L
S.S. Angle Bars Size Chart
Equal AnglesWidth (in mm)
Thickness (in mm)
20 x 20
3, 4
25 x 25
3, 4, 5, 6
30 x 30
3, 4, 5, 6
32 x 32
3, 4, 5, 6
35 x 35
3, 4, 5, 6
40 x 40
3, 4, 5, 6
45 x 45
3, 4, 5, 6
50 x 50
3, 4, 4.5, 5, 6, 7, 8, 9, 10
60 x 60
5, 6, 7, 8, 10
65 x 65
5, 6, 7, 8, 9, 10
70 x 70
5, 6, 7, 8, 9, 10
75 x 75
5, 6, 7, 8, 9, 10, 12
80 x 80
6, 7, 8, 10
90 x 90
6, 8, 9, 10
100 x 100
6, 7, 8, 9, 10, 12
120 x 120
10, 12
150 x 150
10, 12, 13, 15
Width (in mm)
Thickness (in mm)
50 x 30
5
60 x 30
5
60 x 40
5, 6
75 x 50
6
80 x 40
6
100 x 50
6
120 x 80
8, 10
125 x 75
9
127 x 76.2
6.35, 9.53
130 x 65
8, 10
150 x 100
10
152 x 76.2
9.53
152.4 x 101.6
9.53, 12.7
